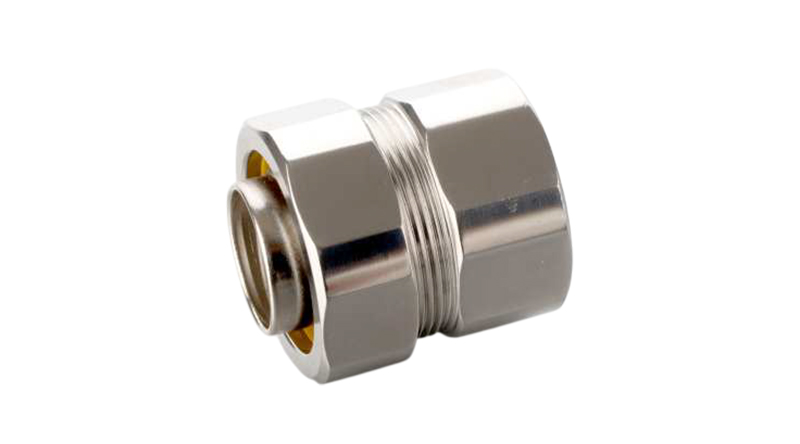

INOX Conduits presents our premium Stainless Steel LT Combination Coupling, a high-performance hybrid fitting engineered to bridge the gap between Liquid-Tight Flexible Metal Conduit (LTFM) and Rigid/IMC conduit systems. Manufactured from premium SS316 stainless steel with a vibration polished finish, our combination couplings provide reliable, corrosion-resistant connections for transitioning between different conduit types in demanding installations.
The LT Combination Coupling is specifically designed with a liquid-tight connector on one end for terminating flexible conduit and a rigid coupling on the other for connecting to rigid metal conduit or IMC . This versatile solution eliminates the need for multiple fittings when transitioning between flexible and rigid raceway systems, providing a single, labor-saving connection point. Whether you are connecting equipment with vibration isolation requirements, making transitions in corrosive environments, or completing installations in food processing facilities, chemical plants, or marine environments, TSI's stainless steel LT combination couplings deliver the quality, durability, and code compliance your project demands .
The LT combination coupling provides critical installation advantages by combining two essential functions into one compact fitting :
Manufactured from Type 316 stainless steel, our combination couplings provide long, dependable service where superior corrosion resistance is required . The 316 alloy provides:
Our combination couplings feature premium surface finishes:
When properly installed, the combination coupling provides :
Each LT combination coupling is supplied complete with:
UL listed liquid-tight flexible metal conduit fittings are suitable for use in the following hazardous locations under NEC :
| Specification | Details |
|---|---|
| Standard | UL 514B – Conduit, Tubing, and Cable Fittings |
| Rigid Connection Standard | UL 6A – Electrical Rigid Metal Conduit – Steel |
| Material | Body: CF8M (316SS) / Gland Nut: 316SS / Locknut: 316SS / Ferrule: Nickel-Plated Steel |
| Finish | 316SS (CF8M) – Electropolished / 316SS – Vibration Polished |
| Connection Type | LT Connector X Rigid Coupling |
| Thread Type (LT Side) | Tapered Male Hub NPT |
| Thread Type (Rigid Side) | NPT (National Pipe Taper) – Female |
| Insulated Throat | Polypropylene – Built-in |
| Locknut | 316SS – Furnished Standard |
| Sealing Gasket | Neoprene – Furnished Standard |
| Gland Nut Sealing Ring | Polypropylene – Furnished Standard |
| Suitable for | Wet Locations |
| Labor Saving Design | Single fitting replaces multiple components |
| Trade Sizes | ½" through 4" |
| Component | Material | Grade | Finish |
|---|---|---|---|
| Body (LT Side) | Stainless Steel | CF8M (316SS) | Electropolished |
| Body (Rigid Side) | Stainless Steel | CF8M (316SS) | Electropolished |
| Gland Nut | Stainless Steel | 316SS | Vibration Polished |
| Ferrule | Steel | – | Nickel Plated |
| Locknut | Stainless Steel | 316SS | Vibration Polished |
| Throat | Polypropylene | – | – |
| Gland Nut Sealing Ring | Polypropylene | – | – |
| Sealing Gasket | Neoprene | – | – |
TSI LT combination couplings are essential for:
Sanitary washdown environments
Acid fumes and caustic environments
Moisture and chemical resistance
Saltwater and high-humidity conditions
Clean rooms and hygienic zones
Corrosive process areas
Hydrocarbon and chemical exposure
Harsh industrial environments
TSI LT combination couplings meet or exceed the following international standards:
| Classification | Rating |
|---|---|
| Class I, Division 2 | Groups A, B, C, D – Flammable Gases and Vapors |
| Class II, Division 1 & 2 | Groups E, F, G – Combustible Dusts |
| Class III, Division 1 & 2 | Combustible Fibers and Flyings |
UL 514B – Conduit, Tubing, and Cable Fittings
UL 6A – Electrical Rigid Metal Conduit – Steel
CSA C22.2 No. 18F – Fittings for Conduit, Tubing, and Cable
NEMA FB-1 – Fittings, Cast Metal Boxes, and Conduit Bodies
NEMA 4, 4X, 3, 3R – Raintight and Corrosion-Resistant Enclosures
UL and CUL Listed – Certified for Canada and United States
Suitable for grounding in sizes ½" through 1¼" under NEC
RoHS Compliant – Restriction of Hazardous Substances
TSI INOX Conduits manufactures every LT combination coupling using premium 316 stainless steel and state-of-the-art production processes, ensuring consistent dimensions, accurate threading, and flawless finishes in every product.
Based in India with a worldwide export network, TSI delivers stainless steel electrical conduit solutions to projects across North America, Europe, the Middle East, and beyond.
Our engineering team provides application assistance, code compliance guidance, and custom solutions to meet your exact project specifications—from material selection to installation best practices.
TSI INOX Conduits specializes in stainless steel conduit solutions for demanding industries, including power generation, pharmaceutical, and food processing, ensuring our products meet the unique requirements of each sector.
TSI INOX Conduits provides a comprehensive stainless steel conduit system:
LT Combination Coupling (Liquid-Tight to Rigid)
316SS / 316SS (CF8M)
Vibration Polished / Electropolished
NPT (National Pipe Taper)
Liquid-Tight Flexible Conduit X Rigid/IMC
½", ¾", 1", 1¼", 1½", 2", 2½", 3", 4"
Gland nut, inside ferrule, sealing ring, sealing gasket, locknut
Contact us today to discuss your requirements, request samples, or receive a competitive quote for bulk LT combination couplings.
