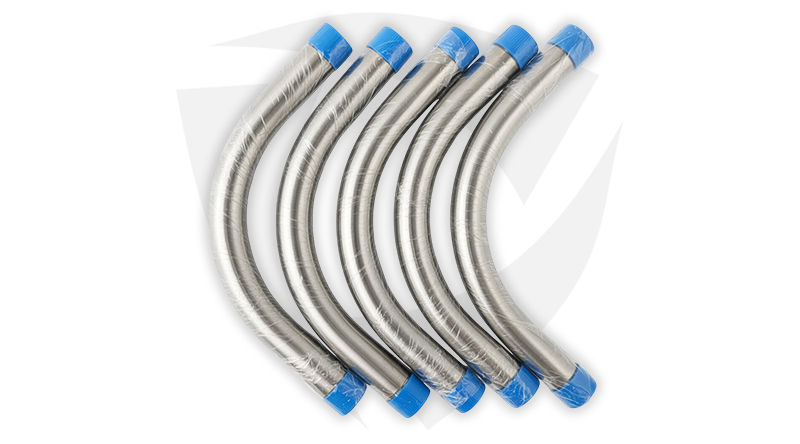

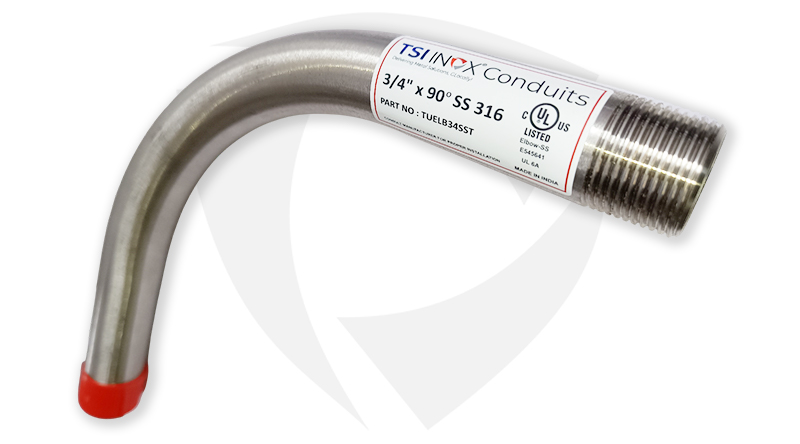

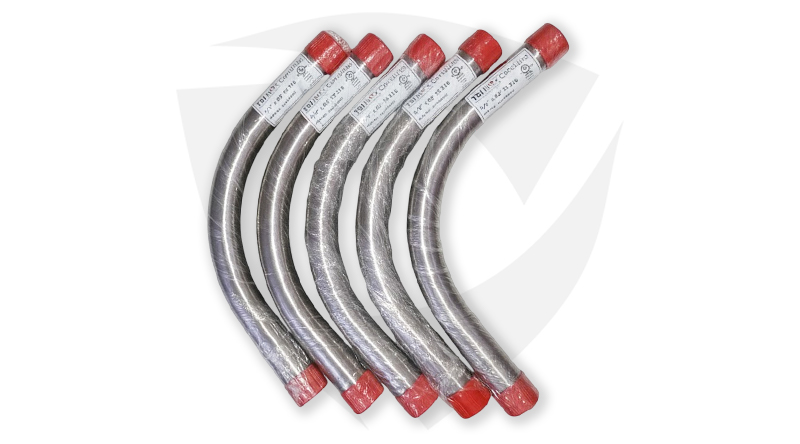

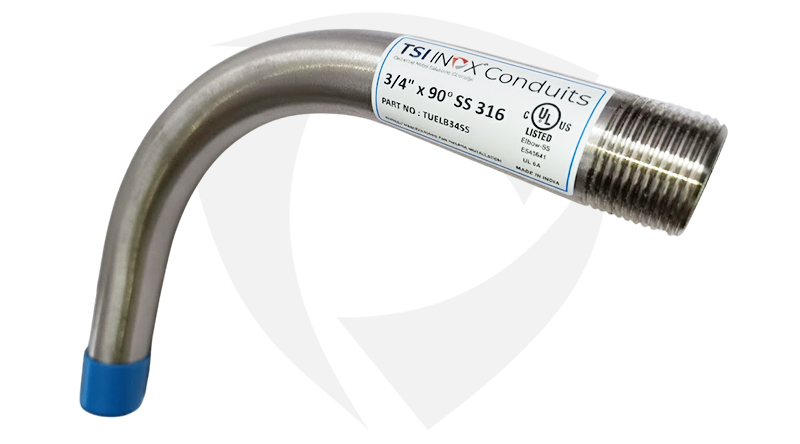

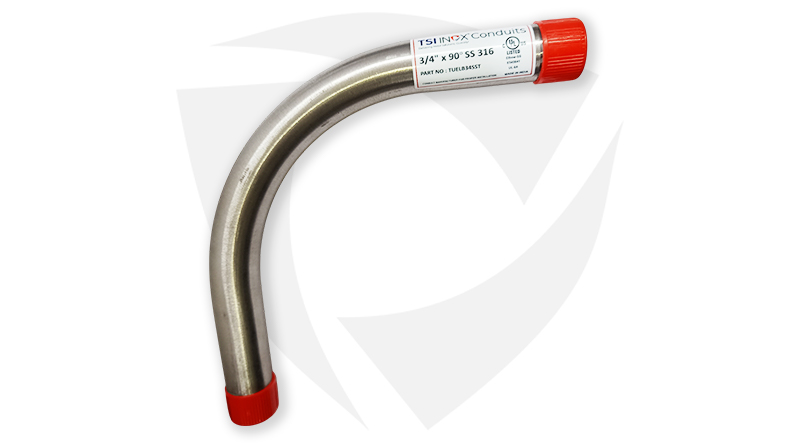

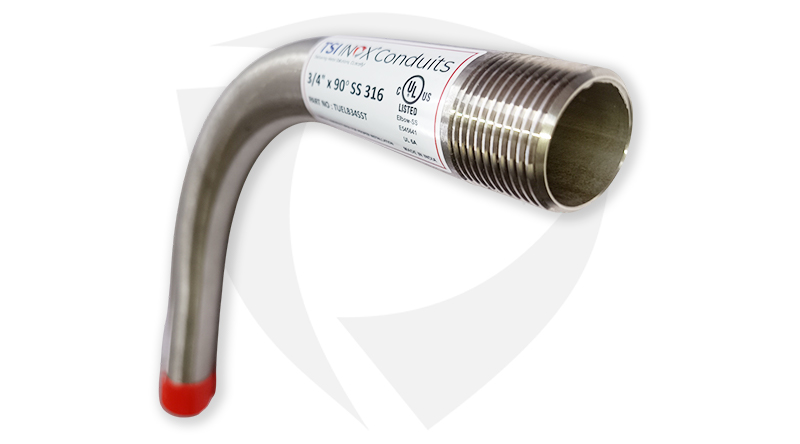

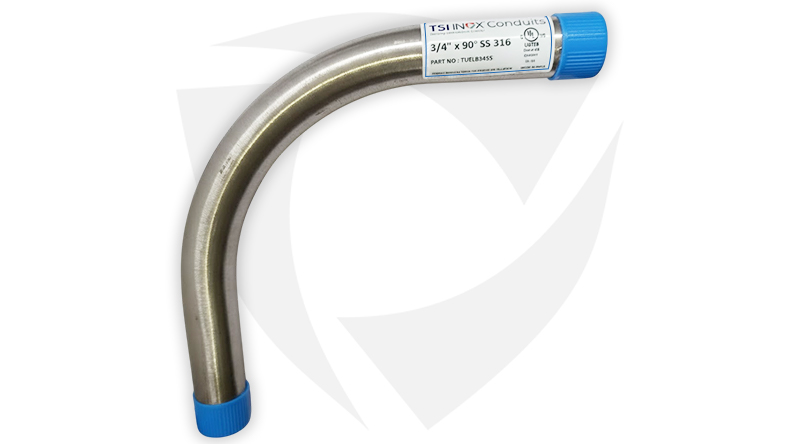

Stainless Steel Rigid Conduit Elbow in SS 304 (AISI 304) and SS 316 (AISI 316)
TSI INOX Conduits crafts premium stainless steel rigid conduit elbows with a sleek #320 grit matte finish, meticulously manufactured to ASTM A403 standards. Our elbows are rigorously tested to meet the stringent requirements of UL 6A standards, ensuring superior quality and safety.
Available in both SS 304 (AISI 304) and SS 316 (AISI 316) stainless steel grades, our products offer exceptional corrosion resistance and longevity. Featuring heavy wall schedule 40 construction, our elbows are built to withstand demanding environments. Choose from our selection of 45 and 90-degree elbows to suit your project's requirements with confidence in durability and performance.
Environment: Traditional / Hygiene / Weather Exposed
Trade Size:16 to 103
Material: 304 (SS) / 316 (SST)
Finish: Natural / Bright / Brushed
Range: ¾” to 4”
Standards: ASTM A312, UL 6A
Country of Origin: India
| Trade Size | Trade Size | Part No. | Part No. | Outside Diameter | A (Offset) | B (Tangent) | C (Radius) | Weight Kg/Pc |
|---|---|---|---|---|---|---|---|---|
| 3/4" | 21 | TUELB34SS | TUELB34SST | 26.67 | 184.15 | 69.85 | 114.3 | 0.45 |
| 1 | 27 | TUELB100SS | TUELB100SST | 33.4 | 219.202 | 73.152 | 146.05 | 0.91 |
| 1 1/4" | 35 | TUELB114SS | TUELB114SST | 42.16 | 276.352 | 85.852 | 190.5 | 1.36 |
| 1 1/2" | 41 | TUELB112SS | TUELB112SST | 48.26 | 295.402 | 85.852 | 209.55 | 1.82 |
| 2 | 53 | TUELB200SS | TUELB200SST | 60.33 | 355.6 | 114.3 | 241.3 | 2.73 |
| 2 1/2" | 63 | TUELB212SS | TUELB212SST | 73.02 | 412.75 | 146.05 | 266.7 | 5.91 |
| 3 | 78 | TUELB300SS | TUELB300SST | 88.9 | 488.95 | 158.75 | 330.2 | 8.64 |
| 4 | 103 | TUELB400SS | TUELB400SST | 114.3 | 596.9 | 190.5 | 406.4 | 14.09 |
| Trade Size | Trade Size | Part No. | Part No. | Outside Diameter | A (Offset) | B (Tangent) | C (Radius) | Weight Kg/Pc |
|---|---|---|---|---|---|---|---|---|
| 3/4" | 21 | TUELB34SS | TUELB34SST | 1.05 | 7.25 | 2.75 | 4.5 | 1 |
| 1 | 27 | TUELB100SS | TUELB100SST | 1.31 | 8.63 | 2.88 | 5.75 | 2 |
| 1 1/4" | 35 | TUELB114SS | TUELB114SST | 1.66 | 10.88 | 3.38 | 7.5 | 3 |
| 1 1/2" | 41 | TUELB112SS | TUELB112SST | 1.9 | 11.63 | 3.38 | 8.25 | 4 |
| 2 | 53 | TUELB200SS | TUELB200SST | 2.38 | 14 | 4.5 | 9.5 | 6 |
| 2 1/2" | 63 | TUELB212SS | TUELB212SST | 2.87 | 16.25 | 5.75 | 10.5 | 13 |
| 3 | 78 | TUELB300SS | TUELB300SST | 3.5 | 19.25 | 6.25 | 13 | 19 |
| 4 | 103 | TUELB400SS | TUELB400SST | 4.5 | 23.5 | 7.5 | 16 | 31 |
| METRIC | INCH-UNIT | |
|---|---|---|
| Outer Diameter | 16-41 ±0.38MM | 1/2" - 1-1/2" : ±0.015 |
| 53 - 155 ±1% | 2" - 6" : ±1% | |
| Thickness | ±12.5 % | ±12.5 % |
| Length | ± 6.35 mm | ± 0.25 |
| Threads | Minus 1/+0 | Minus 1/+0 |
Product Name: Stainless Steel Rigid Elbows
Product Type: Rigid Elbows
Product Family: UL 6A
Catalogue Number: TUELB
Fitting Type: Externally Threaded
Require more technical details or have specific custom requirements? For thorough and comprehensive information regarding Stainless Steel Rigid Conduit Elbow from TSI INOX Conduits, download the Stainless Steel Rigid Conduit Elbow data sheet now or reach out to our skilled technical team for further assistance.
Stainless steel rigid conduit elbow are essential components across a wide array of industries, including but not limited to Food and Beverage Industry, Chemical Industry, Pharmaceutical Industry, Oil and Gas Industry, Marine Industry, Water and Wastewater Treatment, Aerospace Industry, Power Generation Industry, Construction Industry, Automotive Industry, Mining Industry, Railway Industry, Telecommunications Industry, Renewable Energy Industry, Pulp and Paper Industry.
TSI INOX Conduits has been a trusted supplier to these diverse sectors on a global scale.
TSI INOX Conduits provides a diverse selection of stainless steel conduit fittings and accessories, including conduits, nipples, couplings available in both threaded and non-threaded variants, designed to complement stainless steel rigid conduits.
TSI INOX Conduits provides detailed guidance on cutting, bending, and threading stainless steel rigid conduit in our comprehensive technical instructions manual. Alternatively, you can always rely on our technical experts for personalized assistance and support.
TSI INOX Conduit's welded stainless steel rigid conduit elbow enjoy widespread popularity and frequent usage throughout the United States, Canada, and Mexico.
