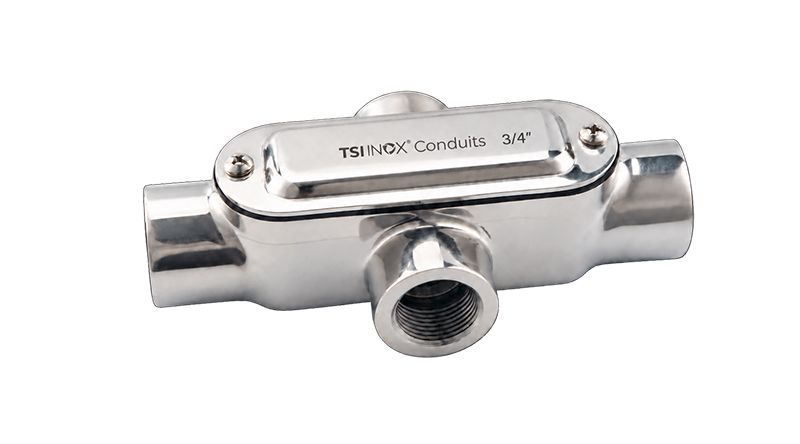

TSI INOX Conduits presents our premium Stainless Steel Conduit Body X Type, a high-performance outlet body engineered for demanding electrical installations requiring superior corrosion resistance, hygienic design, and multi-directional conductor access. Manufactured from premium SS316 (CF8M) stainless steel and featuring a stunning mirror polished finish, our X-type conduit bodies provide durable, sanitary access points for pulling, splicing, and maintaining conductors in food processing, pharmaceutical, chemical, and marine environments.
The X-type configuration features four hubs arranged in a cross pattern, allowing wires to be fed through and routed in multiple directions to simplify installation and reduce the need for additional fittings. Whether you are creating complex raceway intersections, providing access for conductor maintenance, tapping branch conduit runs, or connecting and changing direction of conduit runs, TSI's stainless steel conduit bodies deliver the quality, durability, and code compliance your project demands.
The combination of 316 stainless steel and mirror polished finish provides exceptional corrosion resistance in the most demanding environments, including chemical plants, offshore platforms, food processing facilities, and marine installations. Manufactured in Type 316 stainless steel to meet any stringent sanitary condition.
The mirror polished surface and stainless steel construction create a sanitary conduit body suitable for food-grade and pharmaceutical applications, where bacterial growth and contamination must be minimized.
The tapered NPT threads and all-metal construction provide a reliable, low-impedance equipment grounding conductor path, maintaining electrical continuity throughout the raceway system.
The four-hub X configuration provides unparalleled routing flexibility, allowing wires to be fed through and routed in multiple directions from a single access point.
The conduit bodies are designed to match conduit size for neat, compact installations, ensuring a professional appearance and consistent performance across the entire raceway system.
Conduit outlet bodies provide easy access for future system changes, modifications, and upgrades, reducing downtime and simplifying maintenance.
TSI X-type conduit bodies are widely used in:
| Specification | Details |
|---|---|
| Standard | UL 514A – Metallic Outlet Boxes |
| CSA Standard | CSA 22.2 No. 18 – Outlet Boxes |
| Material | SS316 (CF8M) – Body, Cover, and Cover Screws |
| Finish | Mirror Polished / Brite Polished Finish – Body and Cover |
| Gasket Material | Neoprene |
| Thread Type | NPT (National Pipe Taper) – Tapered Female Threads |
| Raintight Rating | Yes – When installed with cover and gasket |
| Configuration | X Type – Four-way cross with side cover access |
| Form | Form 8 – Extra wiring capacity |
| IP Rating | IP69 – Dust-tight and resistant to high-pressure water jets (when applicable) |
| Component | Material | Grade |
|---|---|---|
| Body | Stainless Steel | 316SS (CF8M) |
| Cover | Stainless Steel | 316SS |
| Cover Screws | Stainless Steel | 316SS |
| Gasket | Neoprene | – |
Our conduit bodies are manufactured from premium 316 stainless steel (cast CF8M), providing:
TSI stainless steel conduit bodies serve multiple essential functions in electrical raceway systems, including:
The X-type design features four hubs arranged in a cross configuration, enabling multi-directional conduit connections that simplify complex raceway layouts. The X configuration limits the amount of additional fittings needed on a project as wires can be fed through and then out in several directions.
X-type conduit outlet bodies provide convenient access points for pulling conductors through long conduit runs, reducing installation time and preventing damage to wire insulation during the pulling process. They can be used as pulling fittings for efficient conductor installation.
X conduit bodies offer dedicated openings for making splices and taps in conductors, enabling branch circuits and connections without requiring large junction boxes. The accessible wiring chamber provides a spacious location to make splices.
Conduit bodies facilitate the connection of conduit sections and provide multi-directional routing options, enabling complex raceway configurations from a single access point.
Conduit outlet bodies provide critical access to conductors for ongoing maintenance, troubleshooting, inspection, and future system modifications.
The X-type design is ideal for making directional changes in conduit runs with maximum flexibility, reducing the number of fittings required.
The flat-back design allows extra wiring capacity and permits the fitting to be mounted flush and snug against flat surfaces for more stable installation.
Our TSI stainless steel conduit bodies meet or exceed the following international standards:
UL 514A – Metallic Outlet Boxes
CSA 22.2 No. 18 – Outlet Boxes
ANSI/NFPA 70 – National Electrical Code (NEC) – Outlet Bodies
NEMA FB-1 – Fittings, Cast Metal Boxes, and Conduit Bodies
NSF/ANSI 169 – Certified for food equipment applications
Raintight – When installed with cover and gasket
IP69 Rated – Dust-tight and resistant to high-pressure water jets (when applicable)
RoHS Compliant – Restriction of Hazardous Substances
The mirror polished (#4 polished / brite finish) finish on both the body and cover provides:
The four-hub X configuration allows wires to be routed in multiple directions from a single access point, simplifying installation and reducing the number of fittings required for complex raceway layouts.
Conduit hubs feature NPT (National Pipe Taper) tapered threads, ensuring:
Two cover screws are provided on all sizes to ensure a tight cover and gasket assembly. The cover features a dome shape for added strength and extra wiring room, accommodating larger conductors and facilitating easier splices.
When installed with the cover and gasket, our conduit bodies are raintight, providing reliable protection against moisture ingress in wet and outdoor location.
The flat back design allows extra wiring capacity and permits the fitting to be mounted flush and snug against flat surfaces for more stable installation.
Solid stainless construction permits easy installation using ordinary hand tools—no specialized equipment required.
TSI INOX Conduits provides a comprehensive stainless steel conduit system for unified specification:
TSI INOX Conduits manufactures every conduit body using premium 316 stainless steel and state-of-the-art production processes, ensuring consistent dimensions, accurate threading, and flawless mirror polished finishes in every product.
Based in India with a worldwide export network, TSI delivers stainless steel electrical conduit solutions to projects across North America, Europe, the Middle East, and beyond.
Our engineering team provides application assistance, code compliance guidance, and custom solutions to meet your exact project specifications—from material selection to installation best practices.
TSI INOX Conduits specializes in stainless steel conduit solutions for demanding industries, including power generation, pharmaceutical, and food processing, ensuring our products meet the unique requirements of each sector.
X Type Conduit Body (Four-way cross)
316SS (CF8M)
Mirror Polished / Brite Polished Finish
NPT (National Pipe Taper) per ANSI/ASME B1.20.1
½", ¾", 1", 1¼", 1½", 2"
Individually boxed to protect mirror polished finish
Cover, gasket, and screws
Contact us today to discuss your requirements, request samples, or receive a competitive quote for bulk stainless steel conduit bodies.
