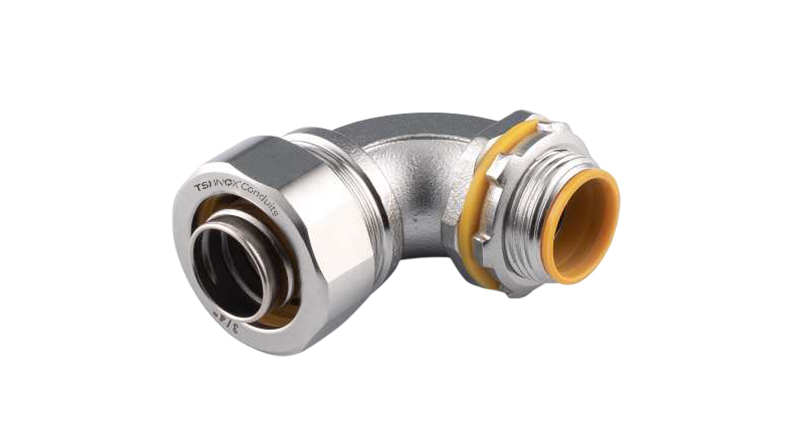

Stainless Steel LT 90° Connector UL 514B

90° Right-Angle Design

The 90° connector configuration provides critical installation advantages:

• Space-constrained routing – Ideal for tight spaces where straight connectors cannot be used
• Obstacle avoidance – Routes conduit around equipment and structural obstacles
• Professional installation – Provides clean, neat conduit runs in complex layouts

Superior Corrosion Resistance

Manufactured from Type 316 stainless steel, our LT 90° connectors provide long, dependable service where superior corrosion resistance is required. The 316 alloy provides

• Superior corrosion resistance – Exceptional protection against chlorides, acids, and saline atmospheres
• Molybdenum-enhanced durability – Resists pitting and crevice corrosion in aggressive environments
• Sanitary properties – Suitable for food processing, pharmaceutical, and hygienic applications
• Long service life – Eliminates lifecycle costs associated with corrosion-related failures

Vibration Polished Finish

Our LT 90° connectors feature a vibration polished finish that provides:

• Enhanced corrosion resistance – Smooth surface minimizes crevice corrosion
• Easy cleaning – Sanitary design suitable for CIP (clean-in-place) systems
• Professional aesthetic – Uniform, attractive finish

Precision NPT Threading

• Tapered male hub – NPT threads for secure connections to female threaded hubs
• Leak-resistant joints – With excellent ground continuity
• Sealing gasket – Provides additional protection against moisture ingress

Long Ferrule Design

The long ferrule provides critical performance benefits:

• Prevents pullout – Securely grips the liquid-tight conduit to prevent pullout under stress
• Prevents tight bend "pop-out" – Eliminates conduit disengagement at tight bends
• Enhanced conduit retention – Provides superior holding power in demanding applications

Insulated Throat

Furnished with an insulated throat (polypropylene) that :

• Protects wire insulation – Prevents conductor damage during installation and throughout service life
• Provides smooth entry – Facilitates wire pulling and prevents abrasion
• Maintains integrity – Provides long-term protection for conductors

Compact, Slim Design

• Compact, slim diameter – Ideal for space-constrained installations
• Small turning radius – Facilitates installation in tight spaces
• Clean, professional appearance – Matches the profile of the conduit

Furnished Components

Each LT 90° connector is supplied complete with:

• Stainless steel locknut – For secure mounting to boxes and enclosures
• Sealing gasket – Provides raintight sealing against the enclosure wall
• Gland nut sealing ring – Creates a liquid-tight seal around the conduit jacket

Grounding Capability

• UL listed for grounding – Suitable for trade sizes ½" through 1¼" under NEC
• Reliable ground continuity – Maintains equipment grounding path through the connector

Hazardous Location Suitability

UL listed liquid-tight flexible metal conduit fittings are suitable for use in the following hazardous locations under NEC :

• Class I, Division 2 – Groups A, B, C, D
• Class II, Division 1 & 2 – Groups E, F, G
• Class III, Division 1 & 2
