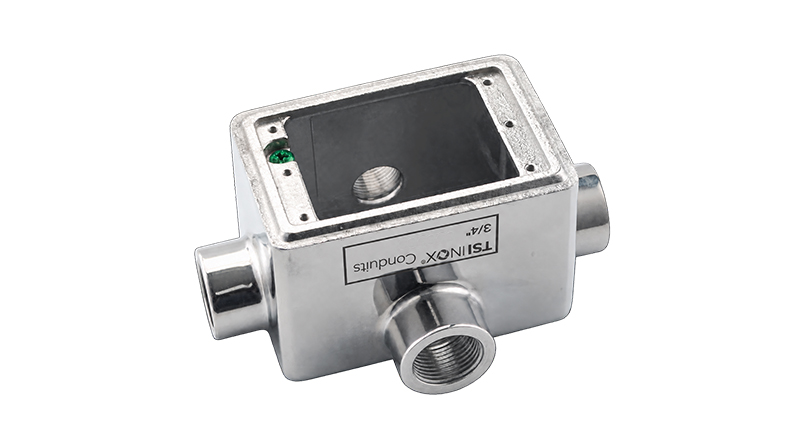

TSI INOX Conduits presents our premium Stainless Steel Device Box and Cover, a high-performance electrical enclosure engineered for demanding installations requiring superior corrosion resistance, hygienic design, and reliable device mounting. Manufactured from premium SS316 (CF8M) stainless steel and featuring a stunning mirror polished finish, our device boxes provide durable, sanitary enclosures for switches, receptacles, and other wiring devices in food processing, pharmaceutical, chemical, and marine environments.
Device boxes are essential components used to wire devices such as switches and receptacles, act as pull boxes, and connect conduit sections . Whether you are installing electrical outlets in sanitary facilities, mounting switches in corrosive environments, or creating pull points for conductor installation, TSI's stainless steel device boxes deliver the quality, durability, and code compliance your project demands.
The combination of 316 stainless steel and mirror polished finish provides exceptional corrosion resistance in the most demanding environments, including chemical plants, offshore platforms, food processing facilities, and marine installations.
The mirror polished surface and stainless steel construction create a sanitary enclosure suitable for food-grade and pharmaceutical applications, where bacterial growth and contamination must be minimized.
The internal grounding screw and all-metal construction provide a reliable, low-impedance equipment grounding conductor path, maintaining electrical continuity throughout the raceway system.
Device boxes are designed to match conduit size for neat, compact installations, ensuring a professional appearance and consistent performance across the entire raceway system.
Device boxes provide easy access for future system changes, modifications, and upgrades, reducing downtime and simplifying maintenance.
Standard switch, receptacle, and GFCI cover options accommodate a wide range of wiring devices
TSI stainless steel device boxes are widely used in:
| Specification | Details |
|---|---|
| Standard | UL 514A – Metallic Outlet Boxes |
| CSA Standard | CSA 22.2 No. 18 – Outlet Boxes |
| Material | SS316 (CF8M) – Body, Cover, and Cover Screws |
| Finish | Mirror Polished / #4 Polished Finish – Body and Cover |
| Gasket Material | Neoprene |
| Thread Type | NPT (National Pipe Taper) – Tapered Threads |
| Raintight Rating | Yes – When installed with cover and gasket |
| Grounding | Internal grounding screw standard |
| Mounting | Mounting feet standard |
| Component | Material | Grade |
|---|---|---|
| Body | Stainless Steel | 316SS (CF8M) |
| Cover | Stainless Steel | 316SS (Blank covers available in cast CF8M or formed 316SS) |
| Cover Screws | Stainless Steel | 316SS |
| Gasket | Neoprene | – |
| Grounding Screw | Stainless Steel | 316SS |
TSI offers stainless steel device boxes in multiple configurations to suit diverse installation requirements:
| Configuration | Hub Arrangement | Typical Application |
|---|---|---|
| Single Hub (Top) | 1 hub (top of box) | Simple connections and device mounting |
| Single Hub (Back) | 1 hub (back of box) | Flush wall installations |
| S Type | 2 hubs (top of box) | Straight conduit runs through box |
| T Type | 3 hubs (top, bottom, side) | Tee connections and branching |
| X Type | 4 hubs (each side) | Four-way intersections |
| C Type (Double-Gang) | 2 hubs (top and bottom) | Two-gang device applications |
| X Type (Double-Gang) | 4 hubs (each side) | Two-gang, multi-directional routing |
Our conduit bodies are manufactured from premium 316 stainless steel (cast CF8M), providing:
Our conduit bodies are manufactured from premium 316 stainless steel (cast CF8M), providing:
TSI stainless steel device boxes serve multiple essential functions in electrical raceway systems, including:
Device boxes provide secure, corrosion-resistant enclosures for mounting electrical devices such as switches, receptacles, GFCI outlets, and other wiring devices
Device boxes provide convenient access points for pulling conductors through long conduit runs, reducing installation time and preventing damage to wire insulation during the pulling process.
Device boxes offer dedicated access for making splices and taps in conductors, enabling branch circuits and connections.
Device boxes facilitate the connection of conduit sections and provide various hub configurations for routing conductors in multiple directions.
Device boxes provide critical access to conductors for ongoing maintenance, troubleshooting, inspection, and future system modifications.
Our TSI stainless steel device boxes meet or exceed the following international standards:
UL 514A – Metallic Outlet Boxes
UL Listed – For Canada and US
CSA 22.2 No. 18 – Outlet Boxes
ANSI/NFPA 70 – National Electrical Code (NEC) – Outlet Bodies
NEMA – National Electrical Manufacturers Association standards
NSF/ANSI 169 – Certified for food equipment applications
Raintight – When installed with cover and gasket
RoHS Compliant – Restriction of Hazardous Substances
The mirror polished (#4 polished) finish on both the body and cover provides:
Our device boxes are manufactured from premium 316 stainless steel (cast CF8M), providing:
Conduit hubs feature NPT (National Pipe Taper) tapered threads, ensuring:
Covers are supplied complete with gasket and stainless steel screws, ensuring a tight, secure seal
Available cover styles include:
When installed with the cover and gasket, our device boxes are raintight, providing reliable protection against moisture ingress in wet and outdoor locations.
Conduit hubs feature NPT (National Pipe Taper) tapered threads, ensuring:
Two cover screws are provided on all sizes to ensure a tight cover and gasket assembly. The cover features a dome shape for added strength and extra wiring room, accommodating larger conductors and facilitating easier splices.
When installed with the cover and gasket, our conduit bodies are raintight, providing reliable protection against moisture ingress in wet and outdoor location.
The flat back design allows extra wiring capacity and permits the fitting to be mounted flush and snug against flat surfaces for more stable installation.
Solid stainless construction permits easy installation using ordinary hand tools—no specialized equipment required.
TSI INOX Conduits provides a comprehensive stainless steel conduit system for unified specification:
TSI INOX Conduits manufactures every device box using premium 316 stainless steel and state-of-the-art production processes, ensuring consistent dimensions, accurate threading, and flawless mirror polished finishes in every product.
Based in India with a worldwide export network, TSI delivers stainless steel electrical conduit solutions to projects across North America, Europe, the Middle East, and beyond.
Our engineering team provides application assistance, code compliance guidance, and custom solutions to meet your exact project specifications—from material selection to installation best practices.
TSI INOX Conduits specializes in stainless steel conduit solutions for demanding industries, including power generation, pharmaceutical, and food processing, ensuring our products meet the unique requirements of each sector.
316SS (CF8M)
Mirror Polished / #4 Polished Finish
NPT (National Pipe Taper) per ANSI/ASME B1.20.1
Single Gang, Double Gang
Blank, Switch, Receptacle, GFCI
1-hub, 2-hub, 3-hub, 4-hub
½" through 4"
Individually boxed to protect mirror polished finish
Cover, gasket, screws, internal grounding screw, and mounting feet
Contact us today to discuss your requirements, request samples, or receive a competitive quote for bulk stainless steel device boxes.
