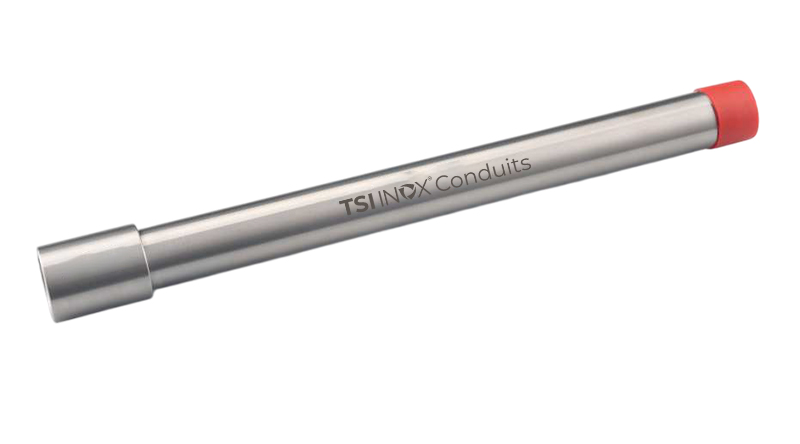

TSI INOX Conduits presents our premium Stainless Steel Intermediate Metal Conduit (IMC), engineered for superior performance in demanding electrical installations. Manufactured in compliance with UL 1242 standards, our stainless steel IMC conduit delivers exceptional corrosion resistance, mechanical strength, and long-term reliability for industrial, commercial, and sanitary applications.
Whether you're specifying conduit for harsh chemical environments, food processing facilities, marine installations, or outdoor weather-exposed locations, TSI's stainless steel IMC conduit provides the durability and safety your project demands.
Whether you're specifying conduit for harsh chemical environments, food processing facilities, marine installations, or outdoor weather-exposed locations, TSI's stainless steel IMC conduit provides the durability and safety your project demands.
Our threaded stainless steel IMC conduit features standard National Pipe Taper (NPT) threads, ensuring trouble-free installation with standard threaded couplings and compression fittings. No special tools or processes are required for installation, reducing labor costs and simplifying field modifications.
IMC conduit offers significant weight savings compared to rigid metal conduit (RMC), providing cost savings on both shipping and installation while maintaining excellent mechanical protection.
TSI's stainless steel IMC conduit is compatible with our full range of stainless steel IMC elbows, nipples, and fittings, allowing you to complete your entire electrical raceway system from a single source.
| Specification | Details |
|---|---|
| Standard | UL 1242 – Electrical Intermediate Metal Conduit – Steel |
| Material Options | 304 Stainless Steel (AISI 304) or 316 Stainless Steel (AISI 316) |
| Finish | Pickling and Passivating (Interior) / Polished #240 (Exterior) |
| Length | 10 ft (3.05m) ± 0.25" (6.35mm) |
| Trade Sizes | ½" through 4" (16mm through 103mm) |
Our precision-manufactured stainless steel IMC conduit meets stringent dimensional requirements:
| Parameter | Tolerance |
|---|---|
| Outside Diameter (½" - 1½") | ± 0.050 in (1.2mm) |
| Outside Diameter (2" - 4") | ± 2% |
| Wall Thickness | ± 12.5% |
| Length | ± 0.25" (6.35mm) |
Our 304 stainless steel IMC conduit offers excellent corrosion resistance and formability, making it ideal for most industrial and commercial applications. The 304 grade provides reliable protection in atmospheric conditions and is suitable for food processing, pharmaceutical, and general manufacturing environments.
For the most demanding corrosive environments, our 316 stainless steel IMC conduit delivers superior resistance to chlorides, acids, and marine atmospheres. The molybdenum content in 316 stainless steel provides enhanced protection against pitting and crevice corrosion, making it the preferred choice for offshore, chemical processing, and wastewater treatment facilities.
Our interior surface treatment process removes surface contaminants and promotes the formation of a protective chromium oxide layer, enhancing corrosion resistance from within the conduit.
The exterior #240 polished finish not only enhances the aesthetic appearance of your installation but also improves corrosion resistance by creating a smooth, clean surface that resists accumulation of contaminants. This bright finish is particularly valued in sanitary and food-grade applications.
TSI's stainless steel IMC conduit is suitable for installation in a wide range of environments, including:
Chemical plants, refineries, and processing facilities.
Sanitary conditions requiring frequent washdowns.
Clean rooms and hygienic installations.
Saltwater exposure and high-humidity conditions.
Direct burial, concrete-encased, and above-grade installations.
Areas subject to moisture and condensation.
Our stainless steel IMC conduit is fully compliant with:
UL 1242 - Electrical Intermediate Metal Conduit - Steel
ANSI C80.6 - American National Standard for Electrical Intermediate Metal Conduit
ANSI/NFPA 70 - National Electrical Code (NEC) Article 342 - Intermediate Metal Conduit
NSF/ANSI 169 - Certified for food equipment applications
TSI INOX Conduits offers a comprehensive line of stainless steel IMC products to meet all your project requirements:
TSI INOX Conduits specializes in crafting stainless steel conduit products to the most rigorous standards, ensuring consistency, reliability, and performance in every product.
With our manufacturing operations in India, TSI INOX Conduits serves customers worldwide, providing high-quality stainless steel conduit solutions for projects across the globe.
Our team possesses deep technical knowledge of stainless steel conduit applications, standards compliance, and installation best practices, ensuring you receive the right product for your specific needs.
10 ft (3.05m) with coupling attached and thread protector for the opposite end.
Custom sizes and lengths are available upon request. Please consult our sales team for specialized requirements.
½", ¾", 1", 1¼", 1½", 2", 2½", 3", and 4"
Contact our sales team today for pricing, technical support, or to request a quote.
